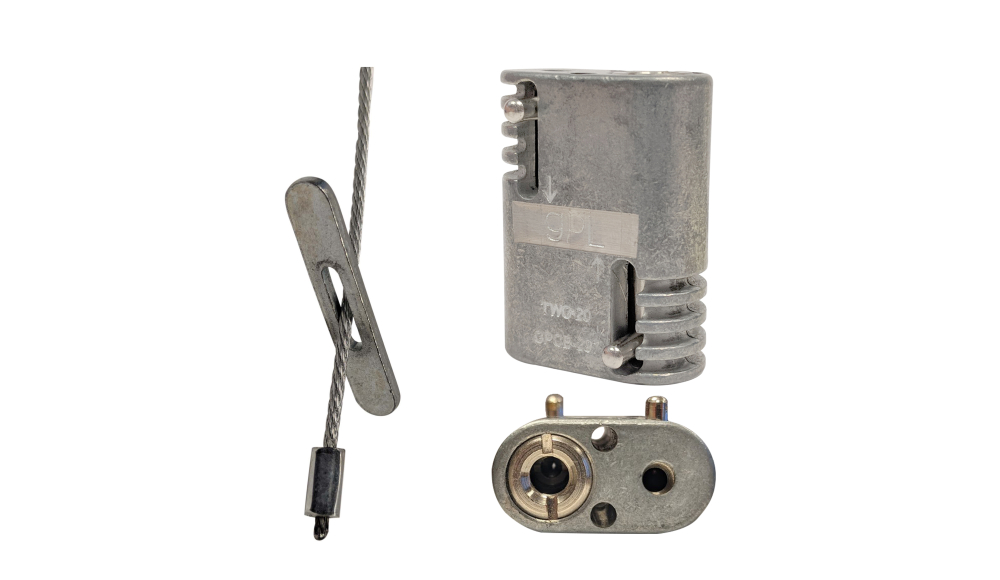

Product Release | Tri-Loop Suspension Wire Kits
Posted on 27-08-2024
Function: Recommended for the suspension of HVAC, electrical and mechanical services.
Applications: Suitable for profile roof cladding, light fittings, luminares and other cavities.
Technical Data:
• SMACNA compliance- all products carry a 5:1 safety factor
• As per UL 1598, CSA C22.2 No.250.0-08
• Tested & Certified by TUV Nord.
Material Specification:
Toggle: MS White Zinc
End Stopper: Ms Zn Trivalent Wire rope Ms Zn Trivalent IS228, (ASTM-D117) -2016 IS-6745-2011
Max Load: 280kg
SWL: 56Kg
Safety Factor 5:1
Downloads | Please See Download Section for Suspension Wire Kit Flyer |
---|
Click on any of the following links to download the file.
