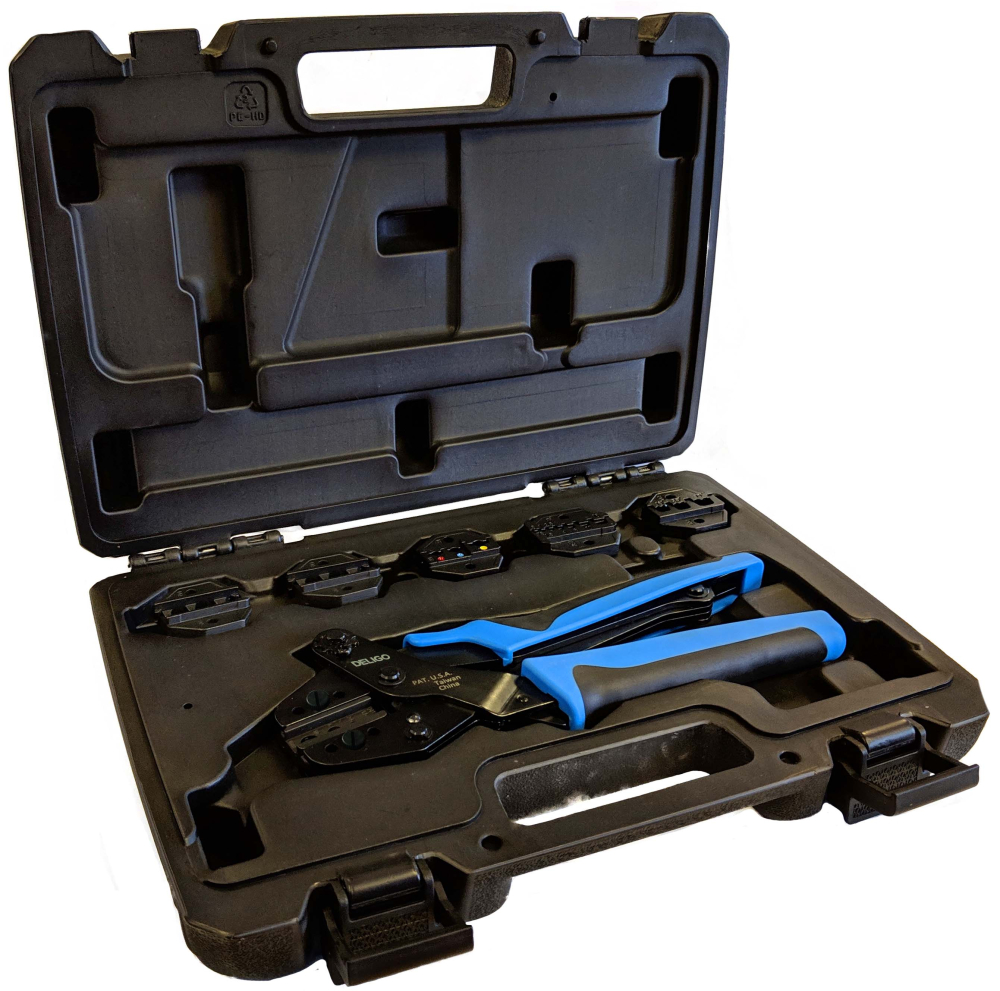

Full Cycle Ratchet crimper/crimping tool with 5 interchangeable die sets for insulated, noninsulated ferrule, cord-end, copper lugs, copper tube terminals and butt splice terminals.
Removable thumb screws for quick change of dies.
Built in safety ratchet mechanism provides precise crimping.
Angled head with streamlined ergonomic grips enhances operation effectively & comfortably.
High leverage design structure of frame provides easy crimp action.
5 Tools in one!
Dies:
DL-5D2
Die set for pin terminal/insulated or non/ insulated ferrules (cord ends). Crimp dimension AWG 6 / 4 / 2 & DIN 16 / 25 / 35mm2
DL-2E2
Die set for pin terminal/insulated or non/ insulated ferrules (cord ends). Crimp dimension AWG 22/ 20 / 18 / 16 / 14 / 12 / 10 / 8 / 6 & DIN 0.5 / 0.75 / 1.0 / 1.5 / 2.5 / 4 / 6 / 10 / 16mm2
DL-2N
Die set for non insulated terminals and copper lugs/ butt splices. Crimp dimension AWG 20- 18 / 16- 14 / 12- 10 / 8 & DIN 1.5/ 2.5 / 6 / 10mm2
DL-5N1
Die set for non insulated terminals and copper lugs/butt splice. Crimp dimension AWG 8 / 6 / 4 & DIN 10 / 16 / 25mm2
DL-2H
Die set for insulated terminals. Crimp dimension AWG 22-18 / 16- 14 / 12-10 & DIN 0.5-1 / 1.5-2.5 / 4-6mm2
